This document describes how to add parts to Builder
When you add components into the Builder, you are actually creating drill-down structure of the Visual Product Tree. First we added all the parts into the Parts List; now we simply select those parts and add it into the Builder in order to create drill-down of the Visual Product Tree.
In order to add components to the Builder, proceed with the following steps:

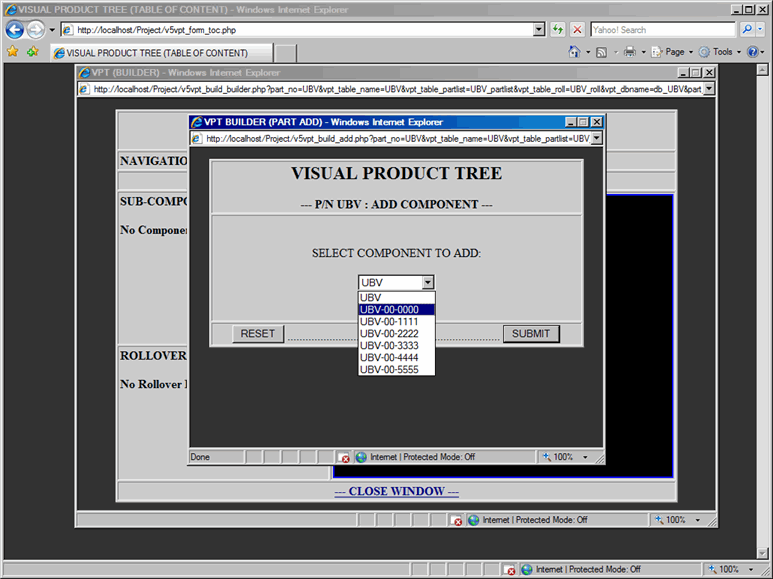

- In the Builder window, from the Sub-Component area, click on Add link; which will display Add Component dialog box, as shown in Figure 1. Note that you are adding sub-components to the top level of assembly (Part No. UBV).
- Select a component UBV-00-0000 from the drop-down list to add it to the builder.
- Submit the form to process your request to add component to the UBV Assembly.
Note: Adding components into the Builder or Deleting components from the Builder does not affect
those components into the Parts List.
Note: If Sub-Component area is empty, then you will not be able to Delete component or
modify any Rollover related information.
Builder - Add Form

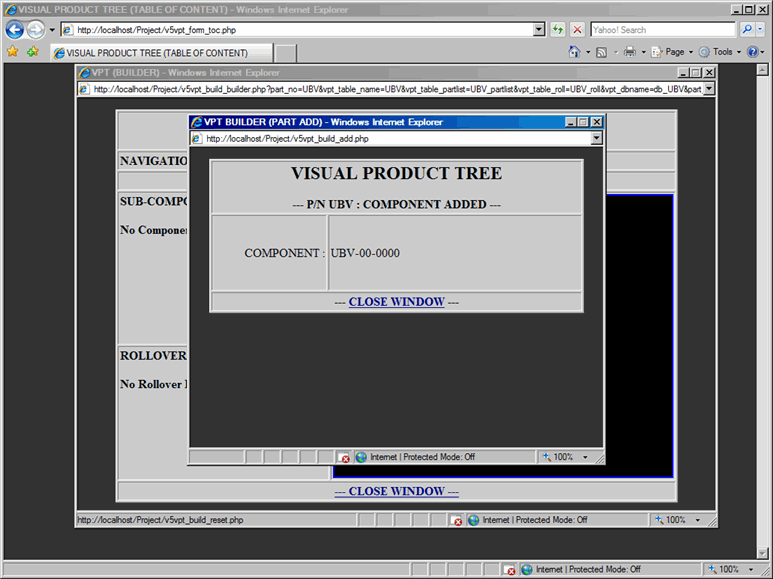

Once the Add Component Form is submitted, confirmation window will be displayed as shown in Figure 2.

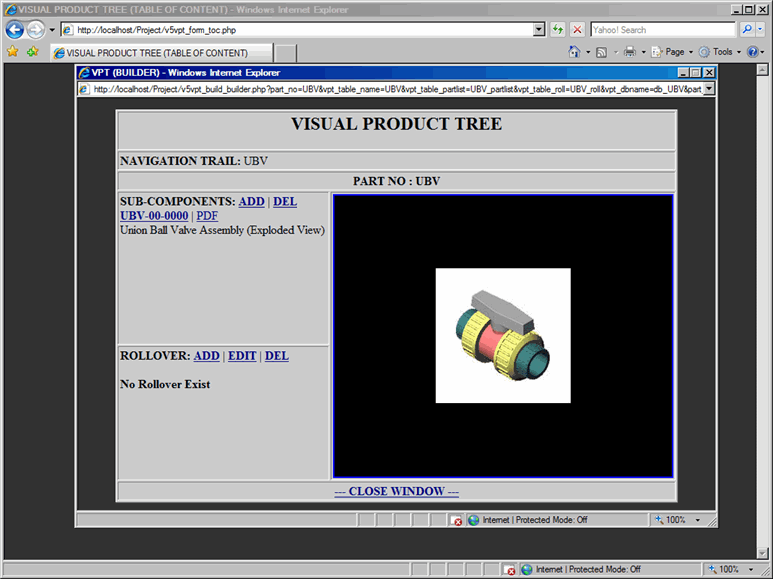

Click on the Close Window link and component (UBV-00-0000) will be added to the top level assembly (UBV) as shown in Figure 3. Also, note this component has PDF documentation attached to it as a link.
Builder - Add Confirmation
Builder - Part Added
