VPT - Record Administration (Parts List)

Display Part from Parts List:

From the Record Administration window, click on Display link, which will display Record Display window with the following information, as shown in Figure 1.

• Part No and Part Description

• File name of PDF documentation, if documentation is attached

• File name of 3D Model, if model is attached

• Thumbnail image of part, if GIF image is attached

• Larger image of part, if JPG image is attached

Click on the Close Window link to return to the Record Administration window.

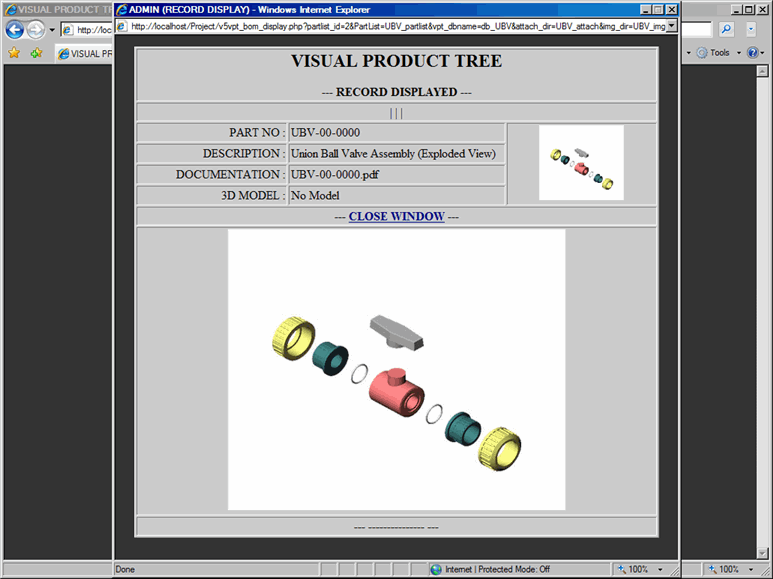

Figure 1: Admin - Record Displayed
