Add Components into the Builder:
When you add components into the Builder, you are actually creating drill-down structure of the Visual Product Tree. First we added all the parts into the Parts List; now we simply select those parts and add it into the Builder in order to create drill-down of the Visual Product Tree.
In order to add components to the Builder, proceed with the following steps:
In the Builder window,
from the Sub-Component area, click on Add link; which will display Add
Component dialog box, as shown in Figure
1.
Note that you are adding sub-components to the top level of assembly
(Part No. UBV).
Select a component UBV-00-0000 from the drop-down list to add it to the builder.
Submit the form to process your request to add component to the UBV Assembly.
|
|
NOTE: Adding components into the Builder or Deleting components from the Builder does not affect those components into the Parts List. NOTE: If Sub-Component area is empty, then you will not be able to Delete component or modify any Rollover related information. |

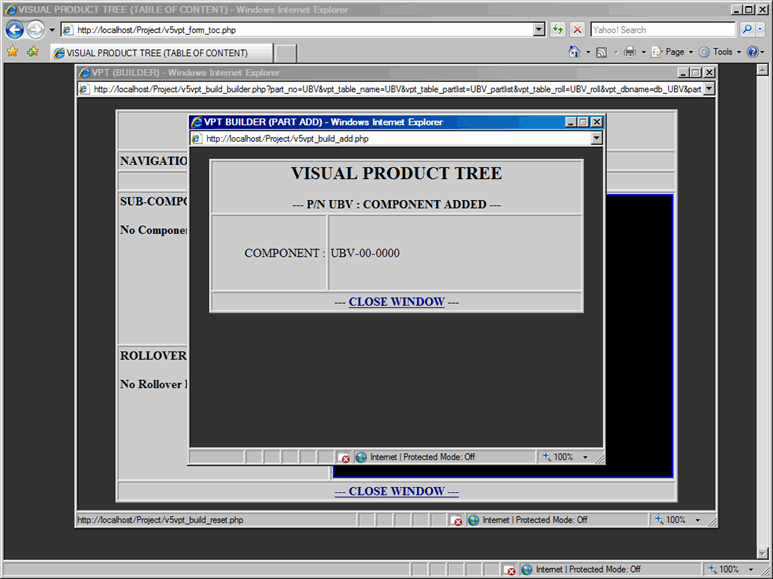

Once the Add Component Form is submitted, confirmation window will be displayed as shown in Figure 2.

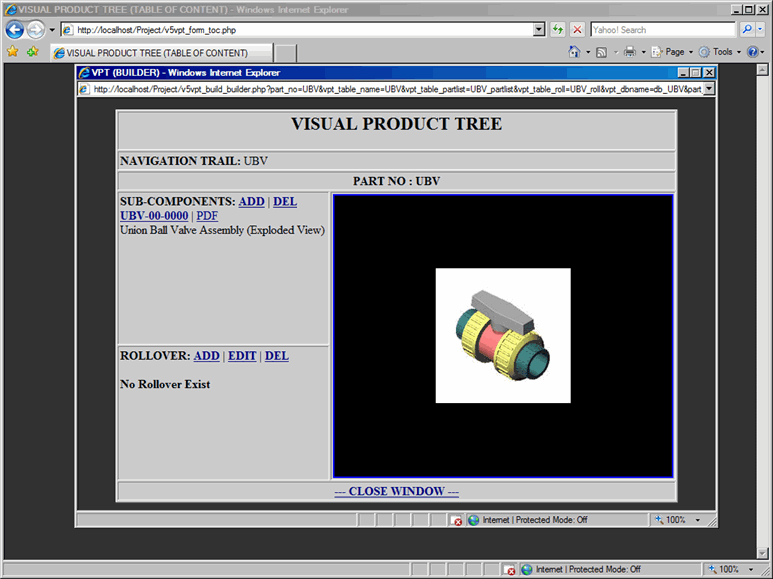

Click on the Close Window link and component
(UBV-00-0000) will be added to the top level assembly (UBV)
as shown in Figure 3.
Also, note this component has PDF documentation attached to it as a link.
Figure 2: Builder - Add Form Confirmation
Figure 3: Builder - Component Added
